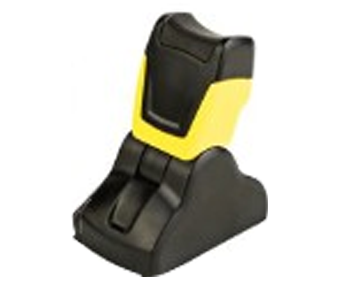

LD100-YN-R2-C45-1_LD100 系列单轴_霍尔摇杆_产品中心_寰立开关丨开关元件最佳解决方案

LD100 系列单轴操纵杆。采用德国进口霍尔传感器，全温度范围线性补偿，多点线性度较正，运动部件与传感器非接触，寿命长。

下载规格书

Number Of Axes	1 axis, Hall sensor
Positioning Mode	spring automatic return, friction resistance positioning, a variety of gears
Operating Angle	±30 °(60 °)
Power Supply	DC3.3V or DC5V
Power Consumption	Single sensor 12mA, dual sensor 23mA
Signal Output	Analog voltage 0.3-4.7V,0.5-4.5V (between 0-5V, factory programmable signal output)
Return Accuracy	＜ 0.3%
Life Expectancy	＞10,000,000 cycles
Operating Temperature	-40℃～+70℃ IP66 protection

Signal output option	Dual intercalation 0.5-4.5V
Handle color	yellow
Handle print	Unprinted word
Positioning mode	Spring back to center, back end locked
curve	Curve 1
