详细参数 / Detailed parameters
| Contact Rating | 25mA at 24VDC(Switching) 100mA at 50VDC(Non-Switching) |
| Contact Resistance | 50mΩ Max.(Initial） 100mΩ Max.(After life) |
| Insulation Resistance | 100MΩ Min. 60sec at 500VDC |
| Dielectric Strength | 300V DC for 60 seconds |
| Switch Capacitance | 5pF Max. at 1M Hz |
| Operating Temperature | -40°C ~+85°C |
| Storage Temperature | -40°C ~+85°C |
| Operating Force | 1,000gf Max. |
| Mechanical Life | 3,000 cycles operations |
| Resistance to Soldering | 260±5℃ for 3-5 seconds |
| Electrical Life | 1,000 cycles 25mA 24VDC |

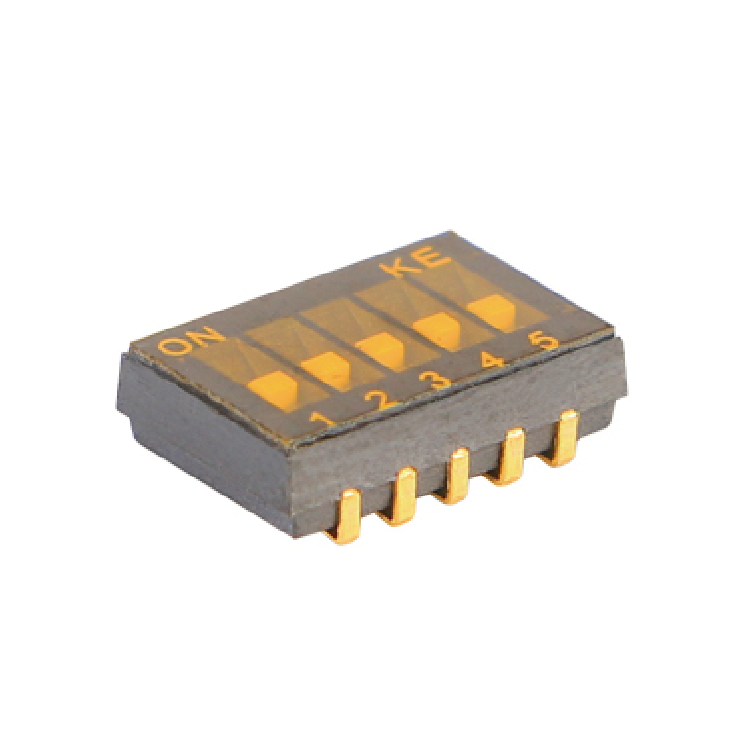

DS01-05TJGER
| Terminal plating | Full Gold |
| Actuator | Tape sealed |
| Position | 5 Position |
| Terminal | J lead |
| Finish | 3u"Gold-plated |
