详细参数 / Detailed parameters
| Rating(Light Force Type) | 0.1A 125/250VAC 25T125 5E4 5A 125/250VAC 25T125 5E4 |
| Rating(Ordinary Type) | 0.1A 125/250VAC 25T125 5E4 5(2)A 125/250VAC 25T125 5E4 16(4)A 125/250VAC 16A 125/250VAC 25T125 5E4 |
| Operating Frequency（Electrical） | 10~30 cycles/minute |
| Operating Frequency（Mechanical） | 30~60 cycles/minute |
| Contact Resistance（Initial Value） | Initial contact resistance 100mΩ Max (without wire) |
| Insulation Resistance | ≥100MΩ（500VDC） |
Dielectric Strength (Between non-continuous terminals） | AC 1000V，50/60Hz 1min |
| Dielectric Strength (Between each terminal and ground） | AC 1500V，50/60Hz 1min |
| Electrical Life | ≥50,000 cycles |
| Mechanical Life | ≥1,000,000 cycles |
| Operating Temperature | -25°C ~+125°C |

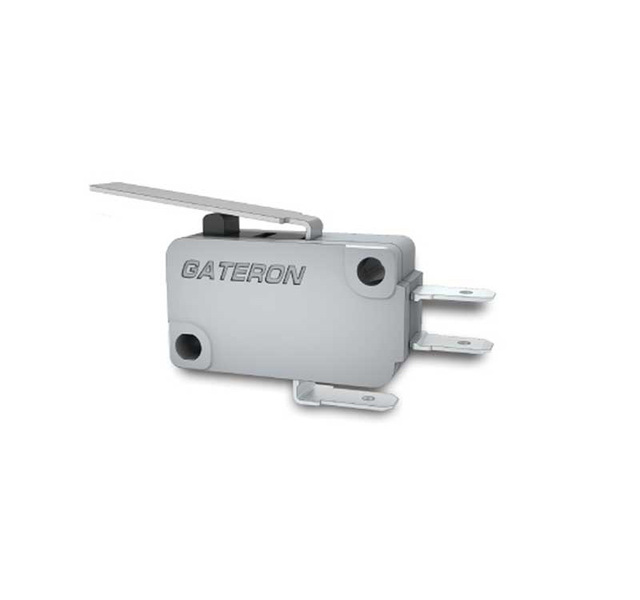

GRS-2C01A16200E
| TERMINAL TYPE | 187# Quick Connect Terminal（T=0.5） |
| Lever type | Standard Straight Lever 4.5*27.5mm |
| Circuit code | SPDT |
| Electrical Rating | 16A 250VAC |
| Operating Force (without Lever) | 200gf |
| Temperature Grade | 25T125 |
