详细参数 / Detailed parameters
| Max. current/voltage rating with resistive load | 400mA 32VAC-100mA 50VDC-125mA 125VAC |
| Metal bushing type | 500mA 48VAC - 200 mA 50VDC - 200mA 250VAC |
| Initial contact resistance | 50mΩmax. (without wire leads) |
| Insulation resistance | 1GΩmin.at 500VDC. |
| Dielectric strength | 1,000 VAC rms.(initial value) |
| Metal bushing type | 1,500 VAC rms.(initial value) |
| Electrical life at full load | 500,000 cycles. |
| Operating temperature | -30°C to 85°C. |
| Total travel | 1.5 mm(.059) |
| Operating force | 2N~5N |
| Contact bounce | 10 ms. |
| Mechanical life | 1,000,000 cycles. |
| Torque | 0.5 Nm max. |
| Metal bushing type | 1.5 Nm max. |
| Soldering | 350℃ max.for 5 seconds. |

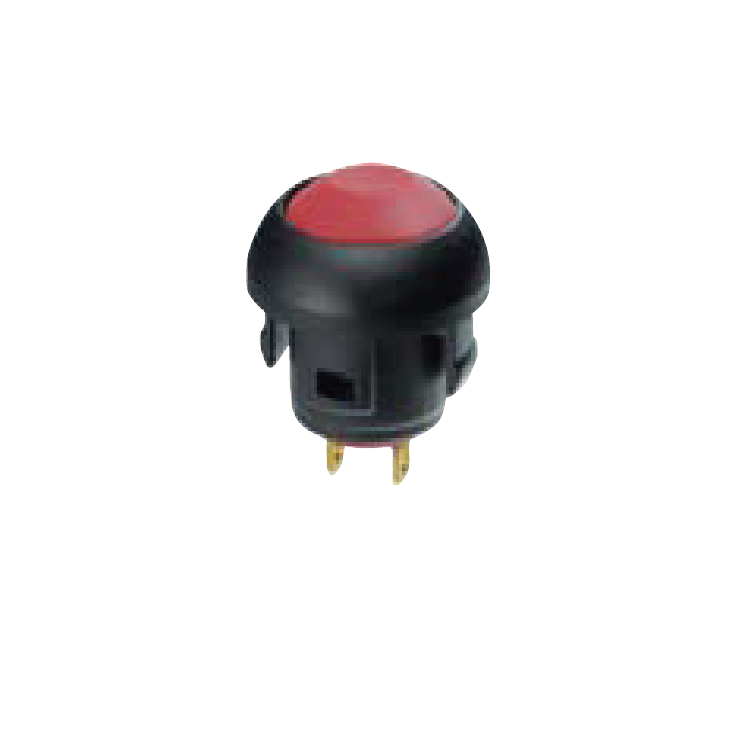

PBS07-S6B3M1CESX-5
| LED color | without LED |
| Model No. | OFF-(ON) |
| Bushing | Round, snap-in |
| Cap color | Red (Std) |
| Additional hardware | Standard hardware |
| TERMINAL TYPE | Solder Lug (std) |
| RoHS Soldering | RoHS & Lead Free |
| CONTACT PLATING | Gold over silver |
