详细参数 / Detailed parameters
| Rating | 2A/36VDC |
| Electrical life | 200,000 make-and-break cycles at full load |
| Mechanical Life | 1,000,000 cycles. |
| Dielectric Strength | 2,000 V rms @sea level. |
| Contact Resistance | 50 mΩ max.@ 1A 12VDC (initial value) |
| Operating Temperature | -20°C to 70°C |
| Travel | about 1.8±0.2mm |
| Operation pressure | 4.5±1.5N |
| Ingress protection | IP67,IK10(Stainless) |
| Torque | 1~3Nm |
性能筛选 / Performance filtering
规格明细表 / Specification list
| 照片 |
型号 |
LED color |
Terminal plating |
Button type |
LED Voltage |
BODY TYPE |
LIGHT TYPE |
BODY MATERIAL |
TERMINAL TYPE |
工程图 |
规格书 |
3D档 |
 |

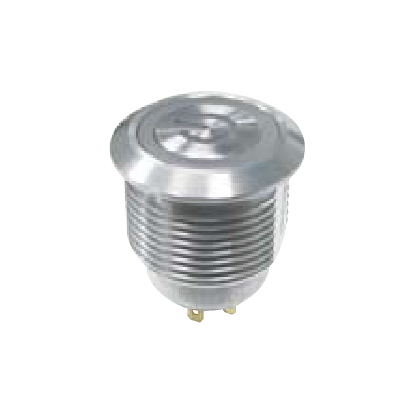

PS22-A01FP-1-JR-12V |
White |
Gold flash |
Flat |
LED input 12 VDC,470Ω |
Double flat |
Power+Ring |
Stainless (Natural) |
Solder terminal |
 |
/ |
/ |
