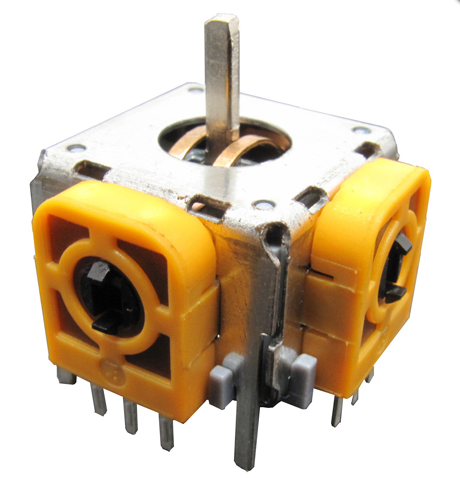

寰立开关的FGJN10K系列的标准操纵杆符合ROHS,操作手感也是同样优越,是指尖操作的理想选择,集成触摸式选择开关,也提高了整机的用户友好型,具有较长寿命可供企业选择。
产业应用:音响控制、工业控制、消费性电子。
Total Resistance | 5KΩ~100KΩ |
Total Resistance Tolerance | ± 20% |
Resistance Taper | B taper |
Rated Power | Taper B: 0.0125W |
Withstand Voltage | 1 minute at AC 250V |
Insulation Resistance | More than 100MΩat DC 250V for 1 minute |
Max. Operating Voltage | Taper B: AC 50V or DC 5.0V |
Figure of lever operation | Circular Operating |
Stopper Strength | 3.1Kgf.cm Min 3Sec. |
Operating angle of lever | 60°±6° |
Push-Pull Strength | Push/Pull: 5.0Kgf Min 3Sec. |
Operating Force | 160±40gf |
Accuracy of rest position | ±5° |
