详细参数 / Detailed parameters
| Total Resistance | 5KΩ~100KΩ |
| Total Resistance Tolerance | ± 20% |
| Resistance Taper | B taper |
| Rated Power | Taper B: 0.0125W |
| Withstand Voltage | 1 minute at AC 250V |
| Insulation Resistance | More than 100MΩat DC 250V for 1 minute |
| Max. Operating Voltage | Taper B: AC 50V or DC 5.0V |
| Figure of lever operation | Circular Operating |
| Stopper Strength | 3.1Kgf.cm Min 3Sec. |
| Operating angle of lever | 60°±6° |
| Push-Pull Strength | Push/Pull: 5.0Kgf Min 3Sec. |
| Operating Force | 160±40gf |
| Accuracy of rest position | ±5° |
性能筛选 / Performance filtering
规格明细表 / Specification list

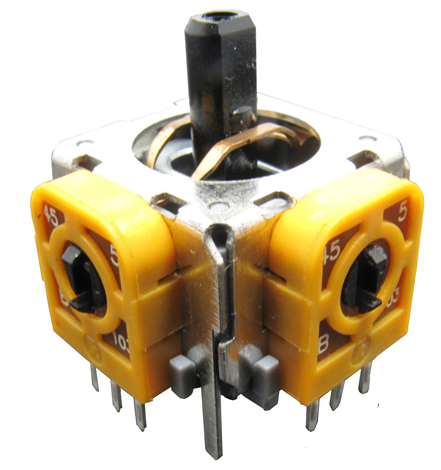

| 照片 |
型号 |
Switch Option |
Shaft Length |
Resistance Taper |
Total Resistance |
Electric Effective Angle |
Operation Life |
工程图 |
规格书 |
3D档 |
 |
FGJP10K-N1B100K29 |
No Switch |
L7.3 |
Linear（0B） |
100K |
See Note 1 |
Std. Life |
 |
/ |
/ |
