详细参数 / Detailed parameters

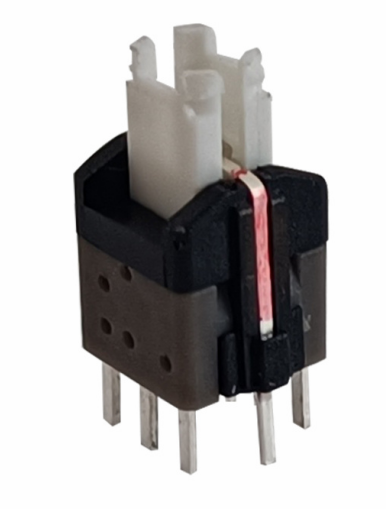

| constituent part | Key, plastic case, 5.8x5.8mm self-locking key switch |
| Rated current and voltage | 100mA 30VDC |
| Insulation strength | DC 500V for 1 minute |
| Contact resistance | 100mΩ |
| Insulation resistance | 100mΩ |
| Switch travel | 2.5±0.5mm |
| Operation strength | 200±100gf |
| Switching function | ON-OFF OFF-(ON) |
| Service life | 200,000 Cycles Min |
| Service temperature | -20℃~+70℃ |
性能筛选 / Performance filtering
规格明细表 / Specification list
| 照片 |
型号 |
Operation force |
size |
Life span |
Total travel |
Shell material |
工程图 |
规格书 |
3D档 |
 |
PB58-0000X |
180±50gf |
5.8*5.8*10.2mm |
10,000 cycles Min |
1.9±0.2mm |
plastic |
 |
/ |
/ |
