详细参数 / Detailed parameters
| Continuous service life | ≥40000h |
| Allows instantaneous voltage fluctuations | ±20%(110V +) |
| Power frequency withstand voltage | 2.5kV(AC RMS), 1min |
| Frequency of use (AC) | 50-60Hz |
| Rated working current | ≤20mA |
| luminance | ≥100cd/㎡ |
| Compared to the creepage index CT1 | ≥100, flame retardant |
| Insulation resistance | Ui≤60V为5MΩ，60V＜Ui≤660V为50MΩ |
| Luminous color | Red, green, yellow, blue, white |
性能筛选 / Performance filtering
规格明细表 / Specification list
| 照片 |
型号 |
TERMINAL TYPE |
Size of mounding hole |
Front protect class |
Life of signal lamps |
body material |
Current(mA) |
工程图 |
规格书 |
3D档 |
 |

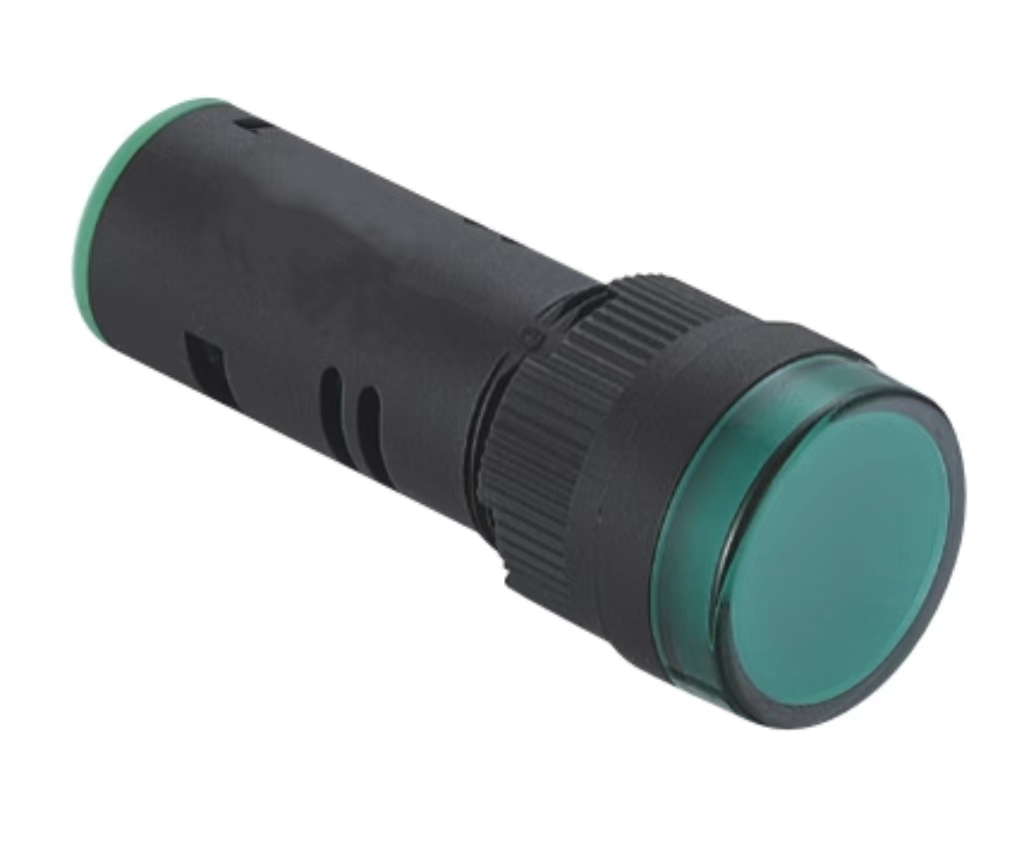

PSL-16-E |
带垫片螺钉接线 |
Φ16mm |
IP54 |
≥50000h |
尼龙PA66 |
≤20mA |
/ |
 |
/ |
