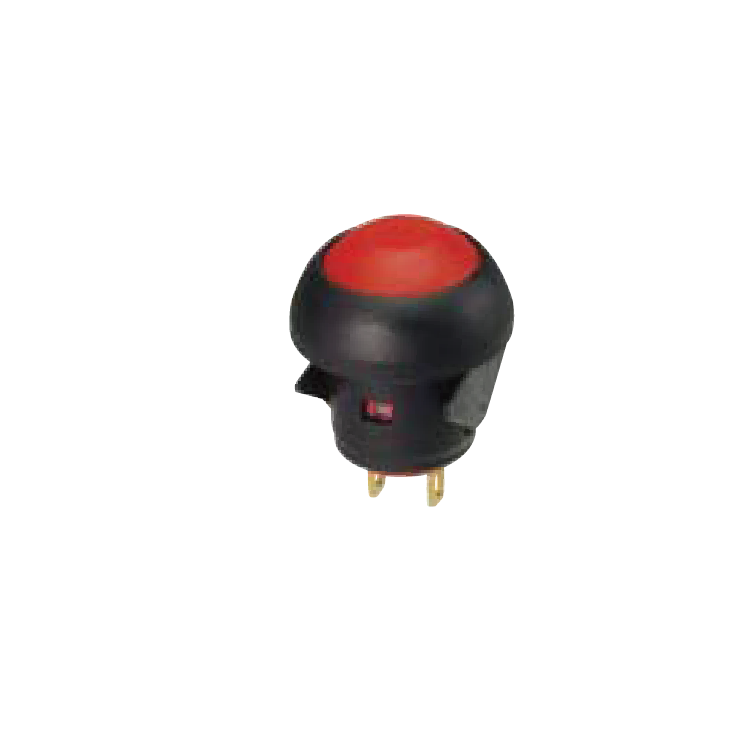

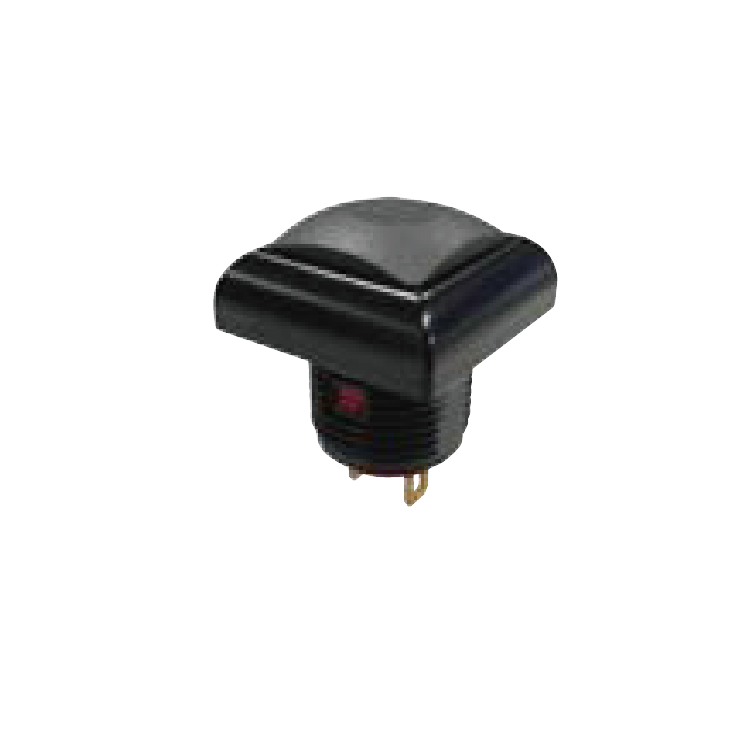

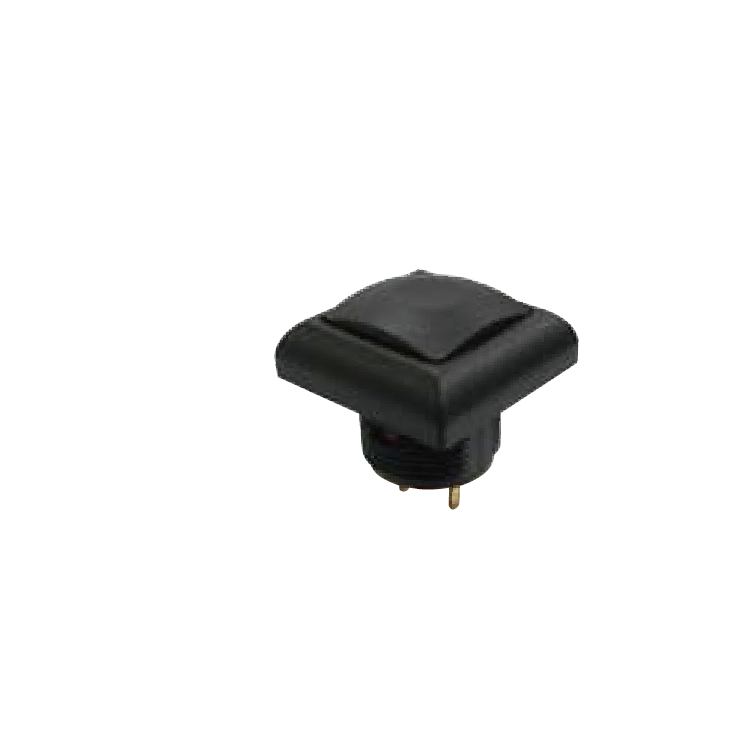

PBS07系列是SPST功能，有圆形、方形、高平面的按钮上盖可以选择，带灯面板安装式按钮开关装在金属压铸外壳中是为了那些寻求更美观外形和工业强度的耐用性却又不牺牲风格的需求者而设计，并有多种颜色上盖可选择。
产业应用：灯饰照明、电脑周边、通讯设备、医疗设备、工控仪器、船舶设备。
| Max. current/voltage rating with resistive load | 400mA 32VAC-100mA 50VDC-125mA 125VAC |
| Metal bushing type | 500mA 48VAC - 200 mA 50VDC - 200mA 250VAC |
| Initial contact resistance | 50mΩmax. (without wire leads) |
| Insulation resistance | 1GΩmin.at 500VDC. |
| Dielectric strength | 1,000 VAC rms.(initial value) |
| Metal bushing type | 1,500 VAC rms.(initial value) |
| Electrical life at full load | 500,000 cycles. |
| Operating temperature | -30°C to 85°C. |
| Total travel | 1.5 mm(.059) |
| Operating force | 2N~5N |
| Contact bounce | 10 ms. |
| Mechanical life | 1,000,000 cycles. |
| Torque | 0.5 Nm max. |
| Metal bushing type | 1.5 Nm max. |
| Soldering | 350℃ max.for 5 seconds. |
