详细参数 / Detailed parameters
| Contact Rating | Dependent upon contact material |
| Mechanical Life | 50,000 make-and-break cycles. |
| Contact Resistance | 20 mΩ max. initial @2- 4VDC, 100mA for both silver and gold plated contacts. |
| Insulation Resistance | 1,000 mΩ min. |
| Dielectric Strength | 1,000 Vrms min. @sea level. |
| Operating Temperature | -30°C to 85°C |
性能筛选 / Performance filtering
规格明细表 / Specification list
| 照片 |
型号 |
Model No. |
Bushing |
Terminal plating |
TERMINAL TYPE |
RoHS Soldering |
PLUNGER |
工程图 |
规格书 |
3D档 |
 |

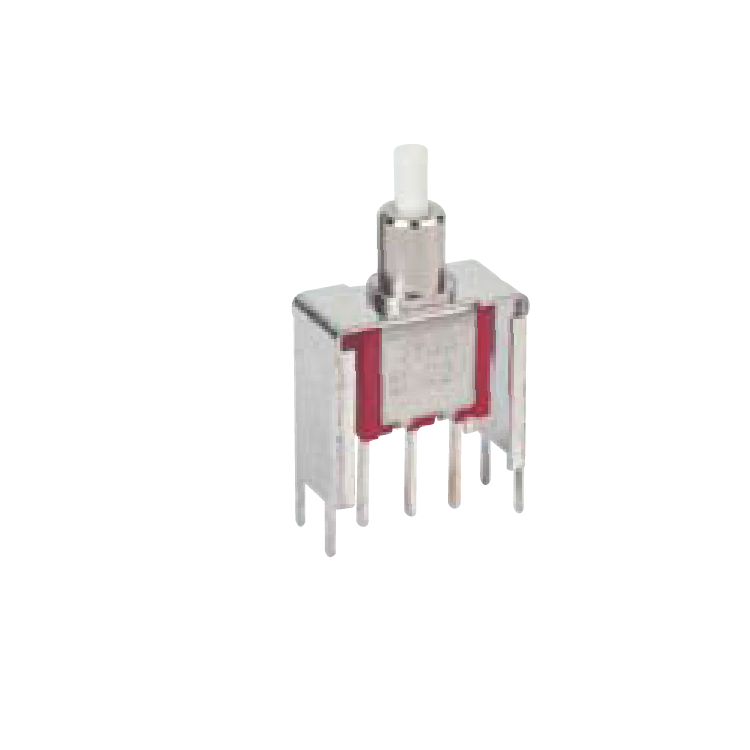

PBS01-D7P1B20VS4QES |
ON-(ON)（DP） |
6.35 high, keyway (non-thd) |
Silver |
11.68 high |
RoHS & Lead Free |
5.54 high (std) |
/ |
/ |
/ |
 |

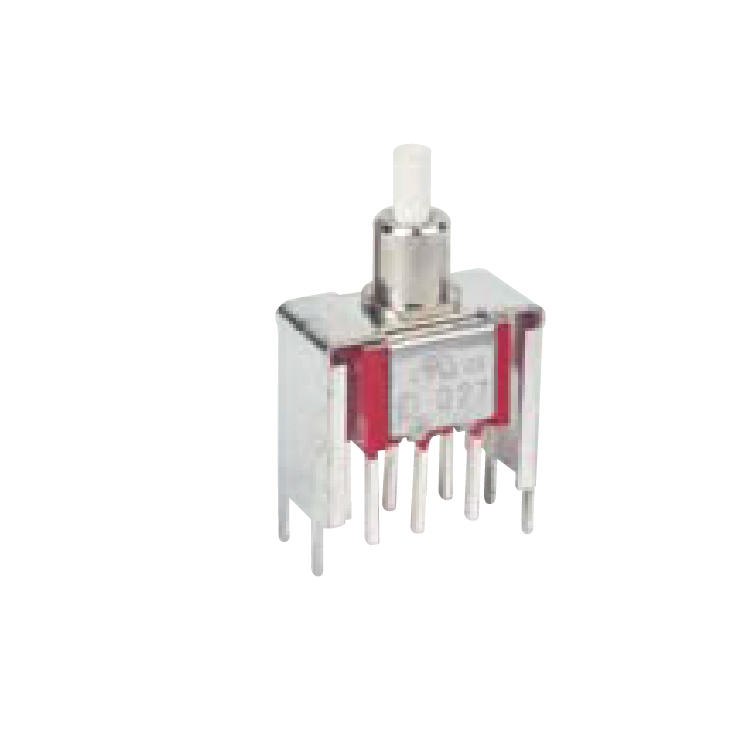

PBS01-S7P1B20VS4QES |
ON-(ON)（SP） |
6.35 high, keyway (non-thd) |
Silver |
11.68 high |
RoHS & Lead Free |
5.54 high (std) |
/ |
/ |
/ |
 |

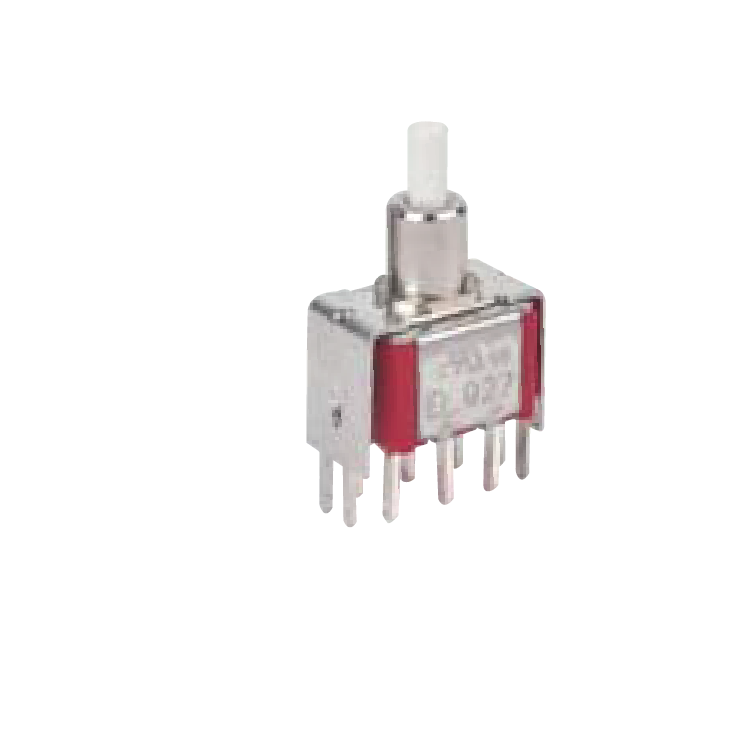

PBS01-D7P1B20VS2QES |
ON-(ON)（DP） |
6.35 high, keyway (non-thd) |
Silver |
11.68 high |
RoHS & Lead Free |
5.54 high (std) |
/ |
/ |
/ |
 |

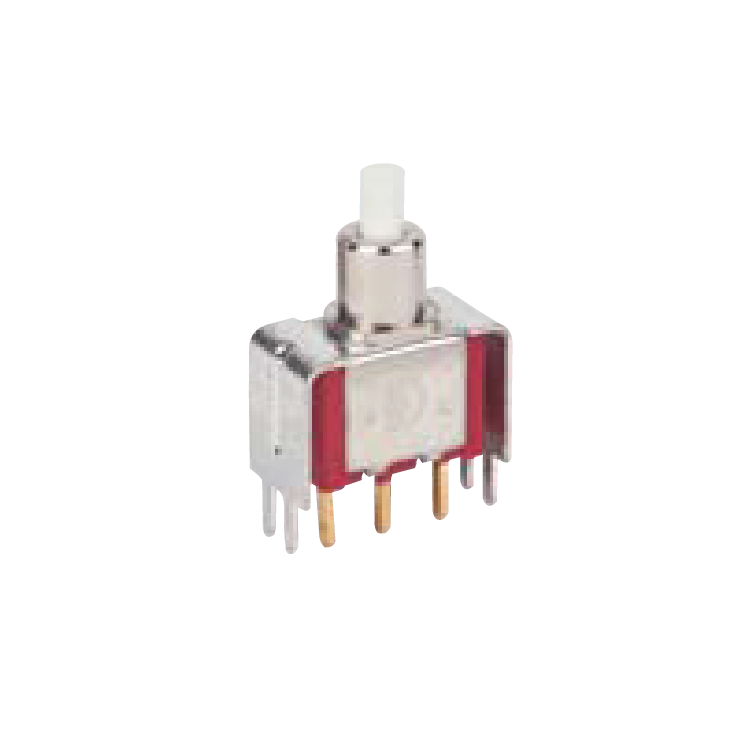

PBS01-S7P1B20VS2RES |
ON-(ON)（SP） |
6.35 high, keyway (non-thd) |
Gold |
11.68 high |
RoHS & Lead Free |
5.54 high (std) |
/ |
/ |
/ |
 |

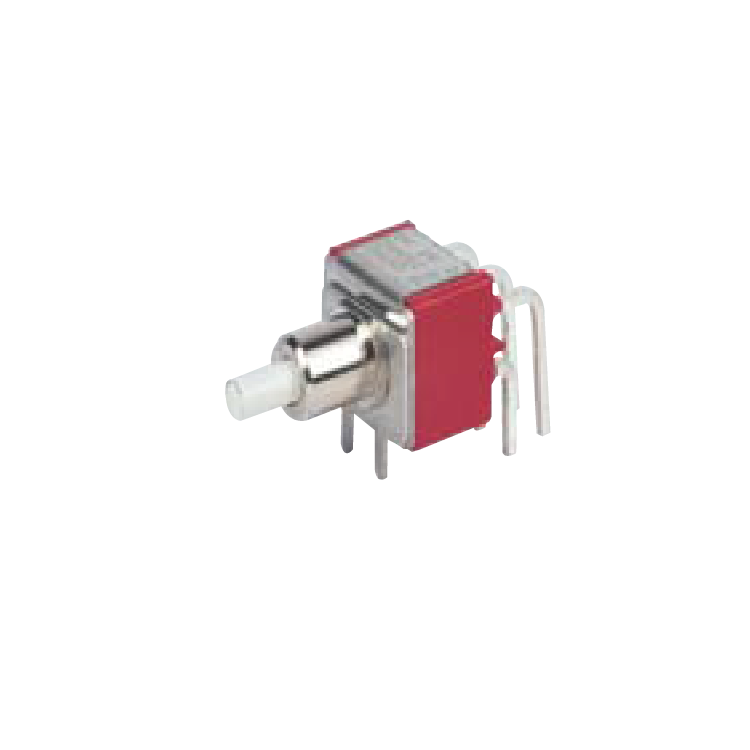

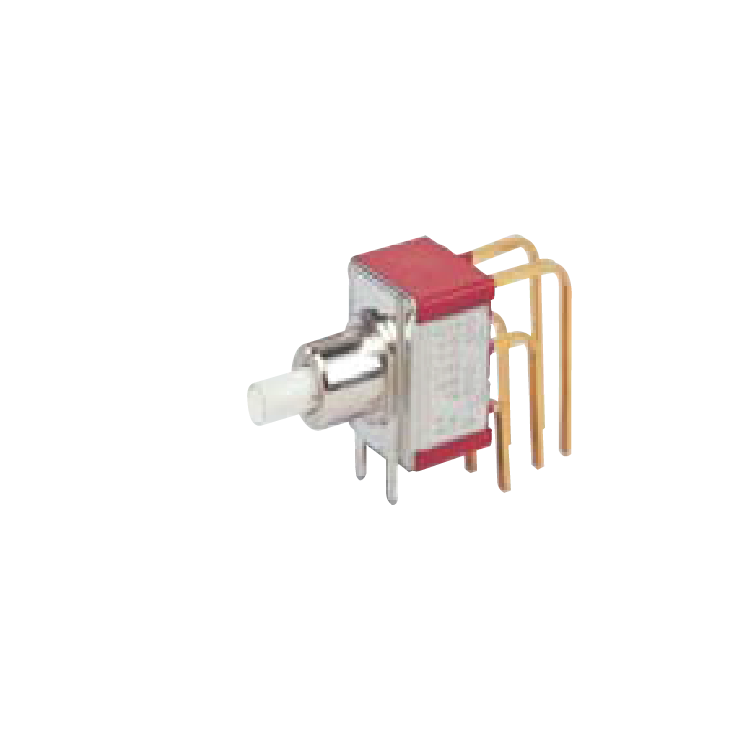

PBS01-D7P1B20M7RES |
ON-(ON)（DP） |
6.35 high, keyway (non-thd) |
Gold |
Vertical right angle, PC thru-hole |
RoHS & Lead Free |
5.54 high (std) |
/ |
/ |
/ |
 |

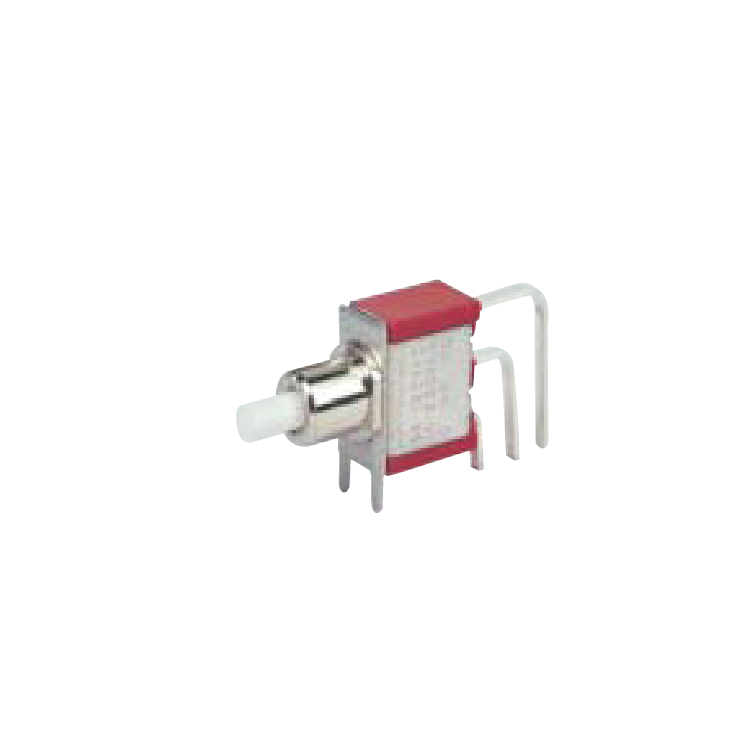

PBS01-S7P1B20M7QES |
ON-(ON)（SP） |
6.35 high, keyway (non-thd) |
Silve |
Vertical right angle, PC thru-hole |
RoHS & Lead Free |
5.54 high (std) |
/ |
/ |
/ |
 |

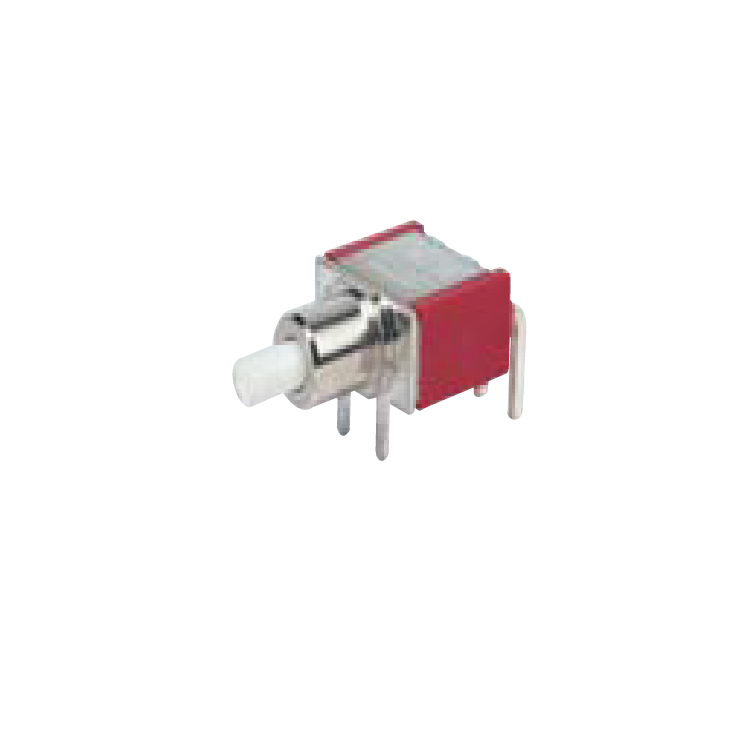

PBS01-D7P1B20M6QES |
ON-(ON)（DP） |
6.35 high, keyway (non-thd) |
Silver |
Right angle, PC thru-hole |
RoHS & Lead Free |
5.54 high (std) |
/ |
/ |
/ |
 |
PBS01-S7P1B20M6QES |
ON-(ON)（SP） |
6.35 high, keyway (non-thd) |
Silver |
Right angle, PC thru-hole |
RoHS & Lead Free |
5.54 high (std) |
/ |
/ |
/ |
 |

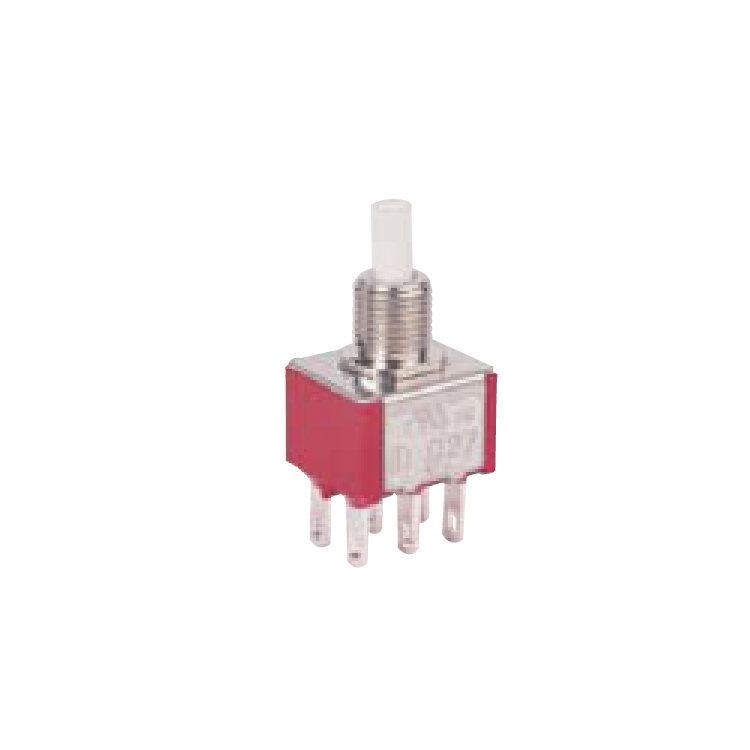

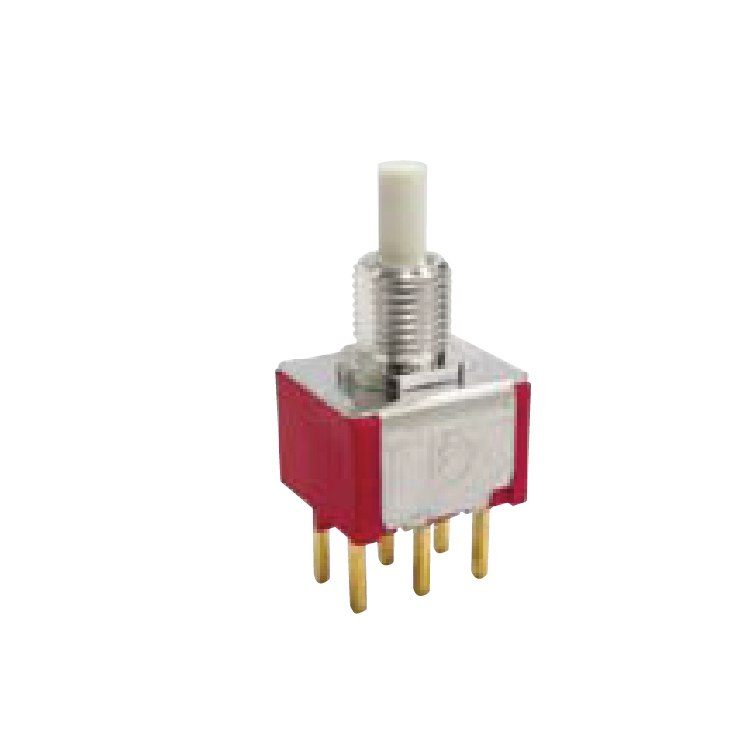

PBS01-D7P1B11M2RES |
ON-(ON)（DP） |
6.35 high, flat (thd std) |
Gold |
PC thru-hole |
RoHS & Lead Free |
5.54 high (std) |
/ |
/ |
/ |
 |
PBS01-D7P1B11M1QES |
ON-(ON)（DP） |
6.35 high, flat (thd std) |
Silver |
Solder Lug |
RoHS & Lead Free |
5.54 high (std) |
/ |
/ |
/ |
 |
PBS01-S7P1B11M1QES |
ON-(ON)（SP） |
6.35 high, flat (thd std) |
Silver |
Solder Lug |
RoHS & Lead Free |
5.54 high (std) |
/ |
/ |
/ |
