详细参数 / Detailed parameters
| Contact Rating | Dependent upon contact material |
| Mechanical Life | 50,000 make-and-break cycles. |
| Contact Resistance | 20 mΩ max. initial @2- 4VDC, 100mA for both silver and gold plated contacts. |
| Insulation Resistance | 1,000 mΩ min. |
| Dielectric Strength | 1,000 Vrms min. @sea level. |
| Operating Temperature | -30°C to 85°C |
性能筛选 / Performance filtering
规格明细表 / Specification list
| 照片 |
型号 |
Model No. |
Bushing |
Terminal plating |
TERMINAL TYPE |
RoHS Soldering |
PLUNGER |
工程图 |
规格书 |
3D档 |
 |

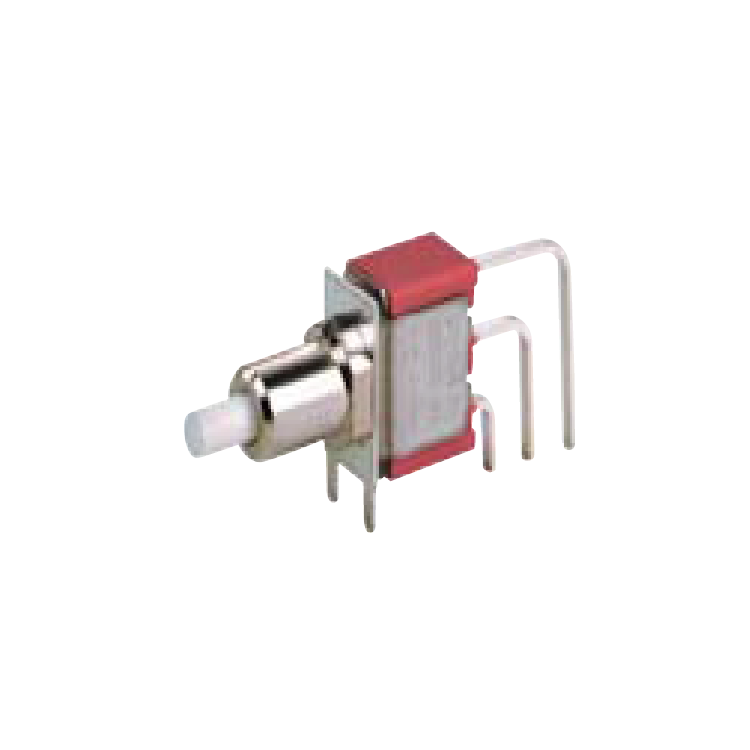

PBS01-DLP1B70VS2QES |
On-On（DP） |
7.62 high,keyway (non-thd) |
Silver |
11.68 high |
RoHS & Lead Free |
7.11 high(std) |
/ |
/ |
/ |
 |
PBS01-SLP1B70VS2QES |
On-On（SP） |
7.62 high,keyway (non-thd) |
Silver |
11.68 high |
RoHS & Lead Free |
7.11 high(std) |
/ |
/ |
/ |
 |

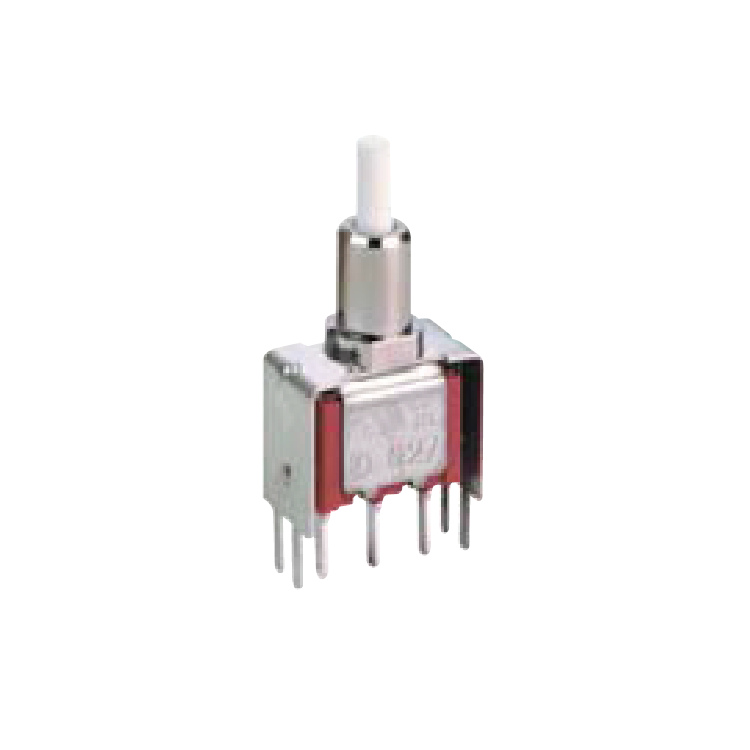

PBS01-DLP1B70M7QES |
On-On（DP） |
7.62 high,keyway (non-thd) |
Silver |
Vertical right angle, PC thru-hole |
RoHS & Lead Free |
7.11 high(std) |
/ |
/ |
/ |
 |

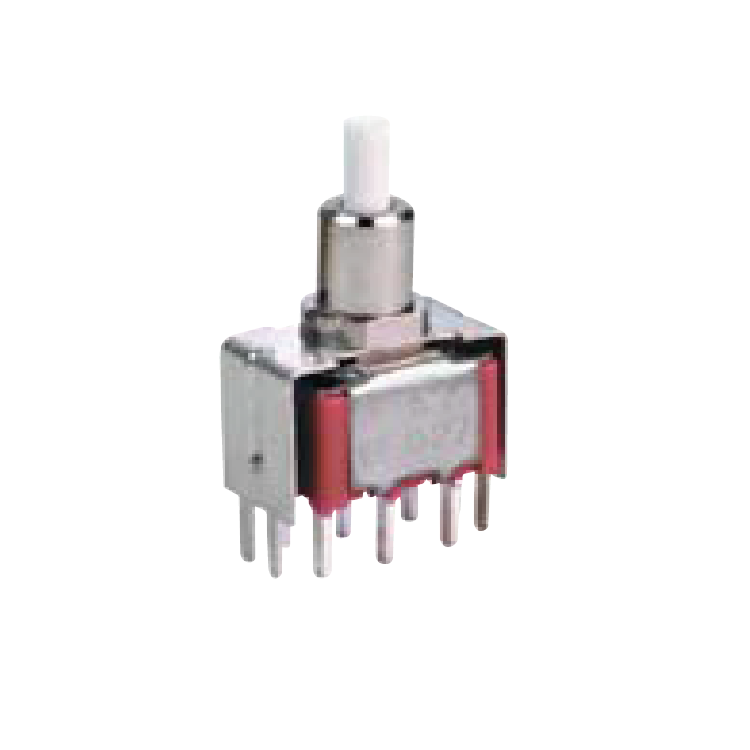

PBS01-SLP1B70M7QES |
On-On（SP） |
7.62 high,keyway (non-thd) |
Silver |
Vertical right angle, PC thru-hole |
RoHS & Lead Free |
7.11 high(std) |
/ |
/ |
/ |
 |

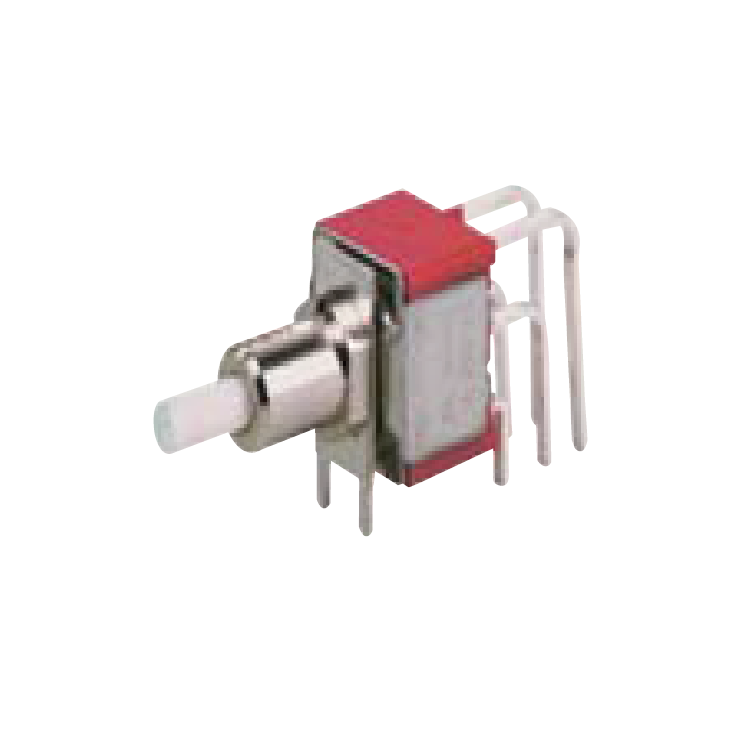

PBS01-DLP1B70M6QES |
On-On（DP） |
7.62 high,keyway (non-thd) |
Silver |
Right angle, PC thru-hole |
RoHS & Lead Free |
7.11 high(std) |
/ |
/ |
/ |
 |

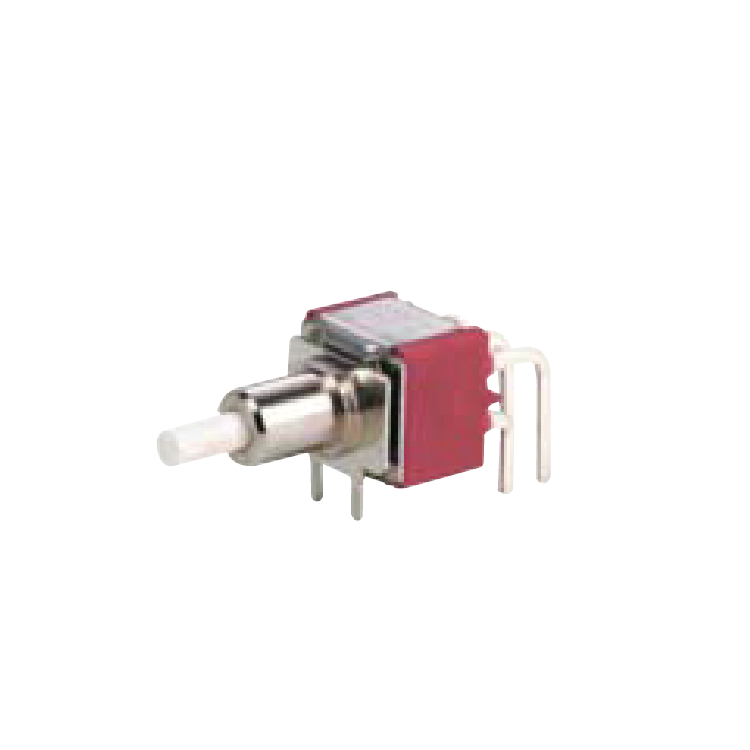

PBS01-SLP1B70M6QES |
On-On（SP） |
7.62 high,keyway (non-thd) |
Silver |
Right angle, PC thru-hole |
RoHS & Lead Free |
7.11 high(std) |
/ |
/ |
/ |
 |

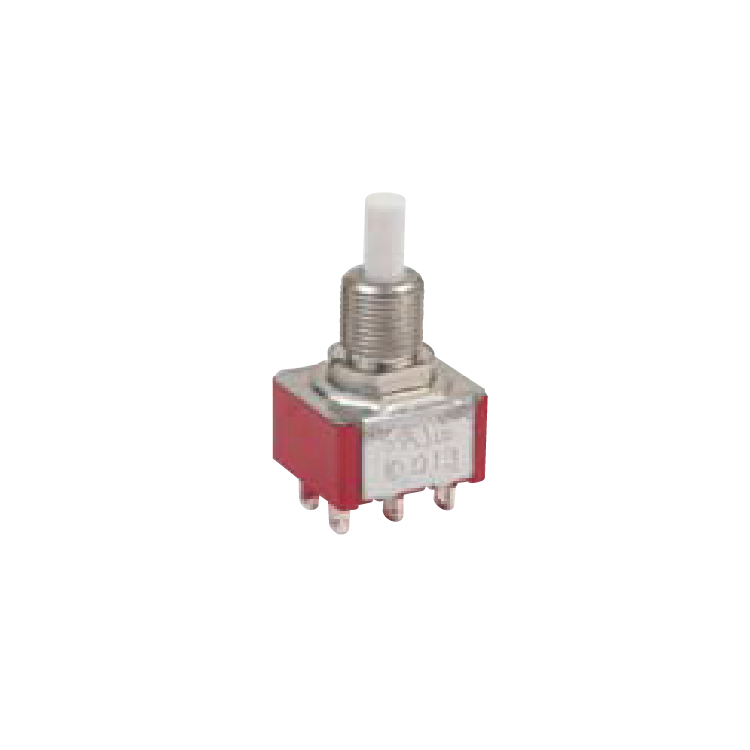

PBS01-DLP1B60M1QES |
On-On（DP） |
7.62 high,keyway (thd std) |
Silver |
Solder Lug |
RoHS & Lead Free |
7.11 high(std) |
/ |
/ |
/ |
 |

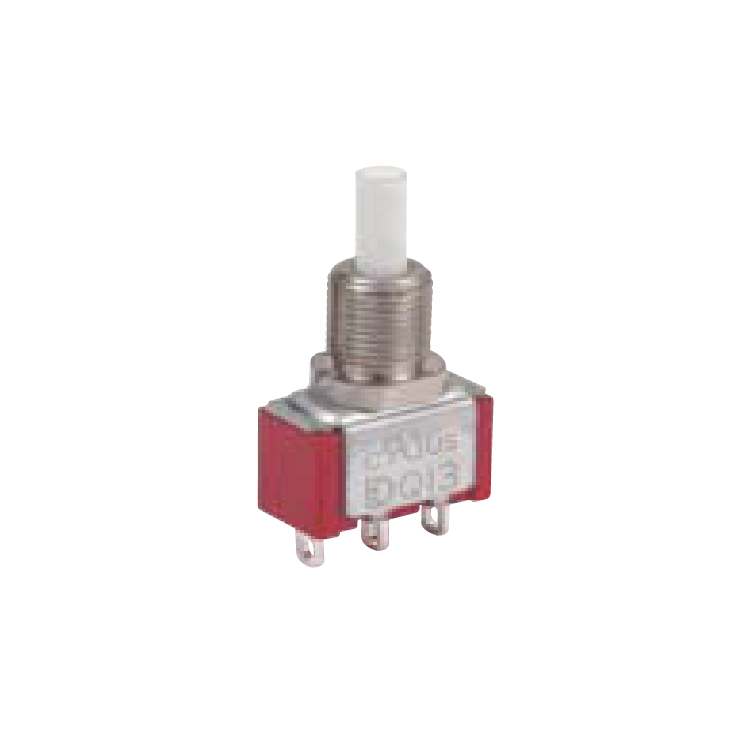

PBS01-SLP1B60M1QES |
On-On（SP） |
7.62 high,keyway (thd std) |
Silver |
Solder Lug |
RoHS & Lead Free |
7.11 high(std) |
/ |
/ |
/ |
