详细参数 / Detailed parameters
| Contact Resistance | 50 mΩ max. initial |
| Mechanical Life | 20,000 cycles |
| Insulation Resistance | 1000 MΩ min. |
| Dielectric Strength | 1,000 Vrms min. @sea level. |
| Operating Temperature | -40°C to 80°C |
| Actuator color | black(std) |
性能筛选 / Performance filtering
规格明细表 / Specification list

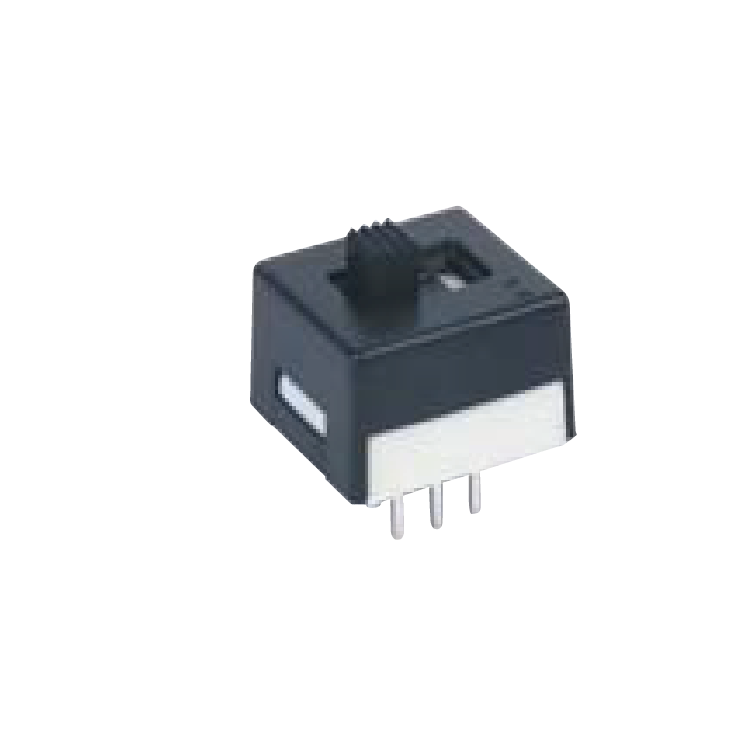

| 照片 |
型号 |
Model No. |
Terminal plating |
Actuator |
TERMINAL TYPE |
RoHS Soldering |
Actuator color |
工程图 |
规格书 |
3D档 |
 |
DSS04-MD1S202M2QES |
ON-NONE-ON（DP） |
Silver |
2.80 high |
PC thru-hole, terminal spacing 2.54mm |
RoHS & Lead Free |
Black(std) |
/ |
/ |
/ |
 |
DSS04-S1S202M1QES |
ON-NONE-ON（SP) |
Silver |
2.80 high |
PC thru-hole, terminal spacing 2.54mm |
RoHS & Lead Free |
Black(std) |
/ |
/ |
/ |
